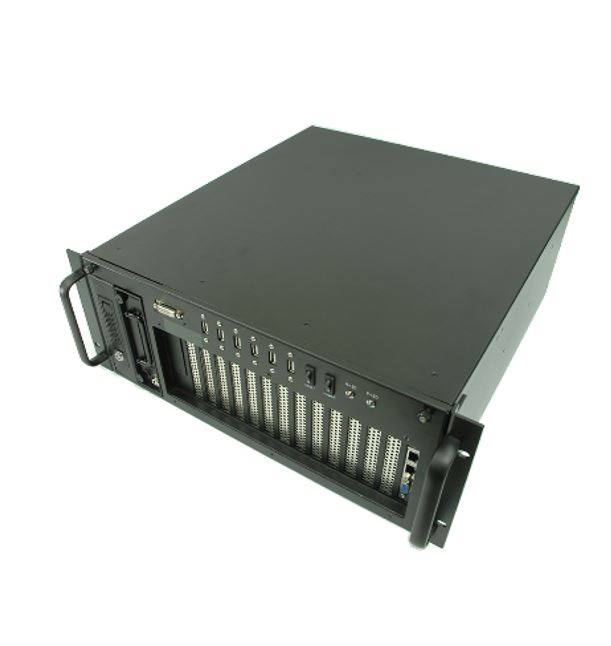

GTC-421F-01
Mounting : 4U Rack Mount
Material : Aluminum
Drive Capacity : 1 x 3.5 Hot Swap Bay, 1 x 5.25 Hot Swap Bay
Slot : 14 Slot
Connector port : 2 x LAN, 4 x COM, 6 x USB, 1 x VGA, 1 x DVI
Cooling : 2 x 120mm Cooling Fan(s)
제품 상세정보
- Processor (CPU)
Intel® 8th Generation Core i9/i7/i5/i3/Pentium®/Celeron® series Processor, Intel® Xeon®,
Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
- System Memory
Up to 32GB ECC-Non - ECC UDIMM, DDR4 - 2666MHz, in 2 DIMM slots
- Network Controllers
Single LAN with Intel® Ethernet Controller I219LM support
Single LAN with Intel® Ethernet PCle Controller I211 - AT support
- USB
6 USB 2.0 ports (6 via headers)
4 USB 3.1 Gen 1 ports (2 rears + 2 via headers)
- Serial Port / Header
4 COM Port (4 headers)
- Expansion Slots
1 PCI - E x 16 / 5 PCI - E x 4 / 7 x 5V PCI 32bit
- SMPS
ATX 500W ~ 1000W (80PLUS Standard / Bronze / Silver / Gold / Platinum / Titanium)
- Operating Environment
Operating Temperature Range 0℃ ~ 60℃ (-4℉ ~ 140℉)
- OS Compatibility
Windows 10 Pro 64bit / Windows 10 IOT 64bit
- Dimensions (W x H x D)
19.1" (485mm) x 6.9" (177mm) x 19.2" (490mm)
