Smart Factory + Automation World 2024 전시회 출품

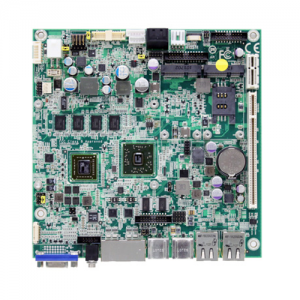

강력한 성능과 다양한 확장성을 갖춘 Mini-iTX Flatform의 산업용 메인보드
INTEL 10th Xeon/Core Series 지원, EtherCAT을 지원 하는 6개의 Gigabit LAN 포트
자체 개발 Riser Card를 통한 PCI Slot, PCIe Slot 확장, M.2 SSD 등 다양한 확장성 제공

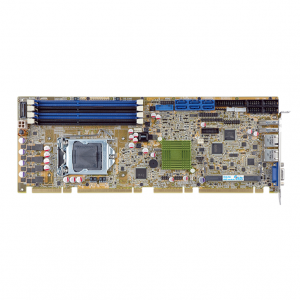

PICMG 1.3 full-size server grade solution
LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32GB
Supports RAID function via SATA 6Gb/s

Ultra Low Profile (16.8mm Height)
Dual Gigabit Ethernet Ports
Soldered onboard PenMount Touch Controller
Dual Independent Dispalys supported
Additional PCIe x1 Slot for PCI Expansion (need riser card)

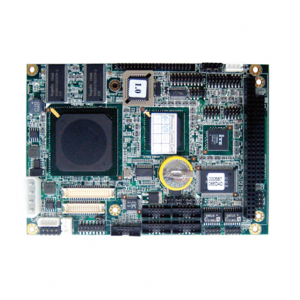

Soldered Onboard AMD® Geode™ LX800 500MHz Processor
Soldered Onboard DDR 256MB Memory
18/24-bit TTL, 18-bit LVDS, and Analog RGB
Support Analog RGB Output, LVDS and TTL Interface for LCD

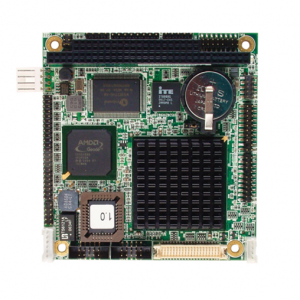

Low Power PC/104 CPU Module
Soldered Onboard AMD® Geode™ LX800 Processor
18/24-bit TTL, and Analog RGB
Multi-expansion (2 x USB, 2 x Serial Ports, 1 x PATA, 1 x FDD, PC/104, 1 x CF Socket)
