지테크시스템

Smart Factory + Automation World 2024 전시회 출품

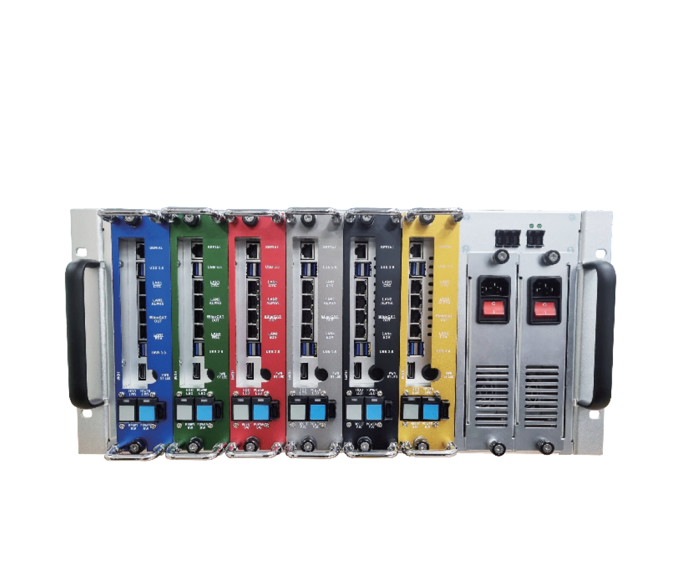

GMM-1M 기준 Maximum 6EA 장착 가능
AC 220V 전원 공급 및 이중화 파워 구성

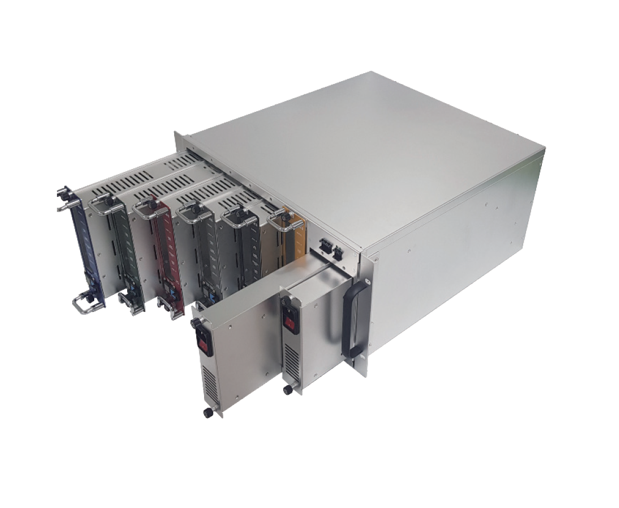

Carrier Housing 구성으로 제품 관리 및 교체 용이

견적문의

- Processor (CPU)

Intel® 6th / 7th Generation Intel® Core i3 / i5 / i7 and Pentium® Processors

- System Memory

Up to 32GB SODIMM , DDR4-2133MHz , in 2 DIMM slots

- Network Controllers

3 LANs with 1GbE with Intel® Ethernet Controller I211 - AT

1 LAN with 1GbE Intel® Ethernet Controller I219LM

- USB

6 USB 3.0 ports (4 rears, 2 via headers)

2 USB 2.0 ports (2 via headers)

- Expansion Slots

1 PCI-E 3.0 x16 (GMM-2M Type. Optional)

- SMPS

2 Redundant 1000W, 80-275 VAC, 47~63Hz

- Operating Environment

Operating Temperature Range - 0°C ~ 60°C (32°F ~ 140°F)

- OS

Windows 10 Pro 64bit / Windows 10 IOT 64bit

- Dimension

19" (482.6mm) x 8.7" (222.0mm) x 17.9" (456mm)
