GTC-920E-02 > Customizing

TOP

Customizing

고객과 함께 성장하는 지테크시스템입니다.

Customizing

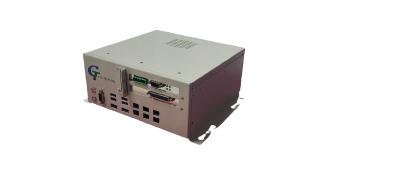

GTC-920E-02

Smart Factory + Automation World 2024 전시회 출품

Mounting : Wall Mount
Construction : Aluminum
Color : Black (Front Silver)
Drive Capacity : 2 x M.2 2280 M-Key
Slot : 2 Slot
Cooling : 2 x 40mm Cooling Fan
Dimensions (W x H x D) : 9.0

견적문의

제품 상세정보

- Specification



- Processor (CPU)

  Socket LGA 1200, support Intel® 10th Xeon/ Core i3/ i5/ i7 processors



- System Memory

  2 x Unbuffered ECC UDIMM DDR4-3200MHz slots, Up to 32GB



- Network Controllers

  5 x Intel® Ethernet Controller i210AT

  1 x Intel® Ethernet Controller i219LM



- USB

  4 x USB 3.0 Ports

  2 x USB 2.0 Ports (2 via headers)



- Disk

  4 x SATA3, RAID 0,1,5,10

  2 x M.2 2280 / M-Key (Gen3x4, NVMe SSD)



- Expansion Slots

  1 x PCI-E x 16



- SMPS

  DC 24V 9.5A 230W Adapter



- Operating Environment

  Operating Temperature Range - 0°C ~ 60°C (32°F ~ 140°F)



- Dimensions

  230mm(W) x 120mm(H) x 246mm(D)
