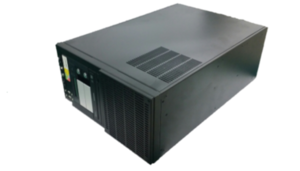

GTC-307 Rev3 > Customizing

- Specification



- Processor (CPU)

  Socket LGA 1151, support Intel® 6th, 7th Core i3 / Celeron / Pentium Processors

  Xeon E3-1200 v5 / v6 Processors



- System Memory

  4 x Unbuffered ECC UDIMM DDR4-2400MHz, Up to 64GB



- Network Controllers

  2 x Intel® Ethernet Controller I210-AT



- USB

  3 x USB 3 ports (1 Type A; 2 via header)

  6 x USB 2.0 ports (4 via header; 2 rear)

  2 x USB 3.0 ports (2 rear)



- Disk

  6 SATA3 RAID 0,1,5,10

  1 x M.2 22110, 2280, 2242, 2260 / M-Key



- Expansion Slots

  1 x PCIe 3.0 x8

  1 x PCIe 3.0 x8 (in x16 slot)

  1 x PCIe 3.0 x4 (in x8 slot)



- SMPS

  Industrial 750W Single / 100~240 Vac / 50-60Hz / 80Plus Gold Level



- Operating Environment

  Operating Temperature Range - 0°C ~ 50°C (32°F ~ 122°F)



- Dimensions

  346mm(W) x 177mm(H) x 505mm(D)
