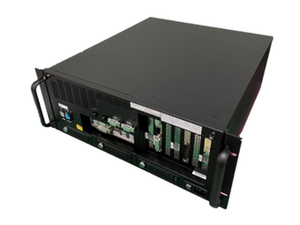

GTC-420F-10 > Customizing

- Specification



- Processor (CPU)

  Socket LGA 1150, support Intel® 10th Core i3/ i5/ i7 processors
  Xeon 4th Processors



- System Memory

  4 x Unbuffered ECC UDIMM DDR4-1600MHz slots, Up to 32GB



- Network Controllers

  1 x Intel® Ethernet Controller I210-AT

  1 x Intel® Ethernet Controller I217LM



- USB

  10 x USB 3.0 Ports (2 rear + 4 via headers)

  6 x USB 2.0 Ports (4 rear + 6 via headers)



- Disk

  8 x SATA3 RAID 0,1,5,10



- Expansion Slots

  2 x PCI-E 3.0 x16 slots (16/NA or 8/8)

  3 x PCI-E 2.0 x1



- SMPS

  Industrial 700W Single / 90-264Vac / 50-60Hz / 80Plus Bronze Level



- Operating Environment

  Operating Temperature Range - 0°C ~ 50°C (32°F ~ 122°F)



- Dimensions

  482.6mm(W) x 177mm(H) x 483mm(D)
