Industrial System

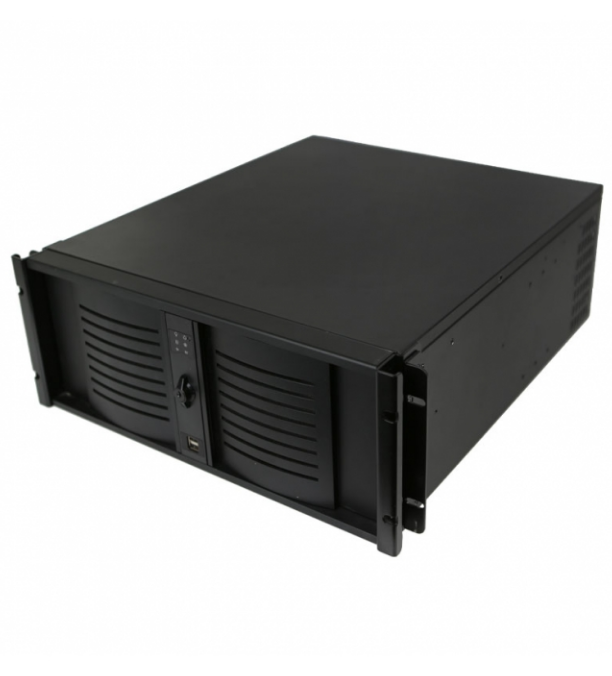

EYE-4800
Mounting : 4U Rack Mount
Material : Aluminum
Drive Capacity : 4 x 5.25, 1 x 3.5 Hot Swap Bay
Slot : 7 Slot

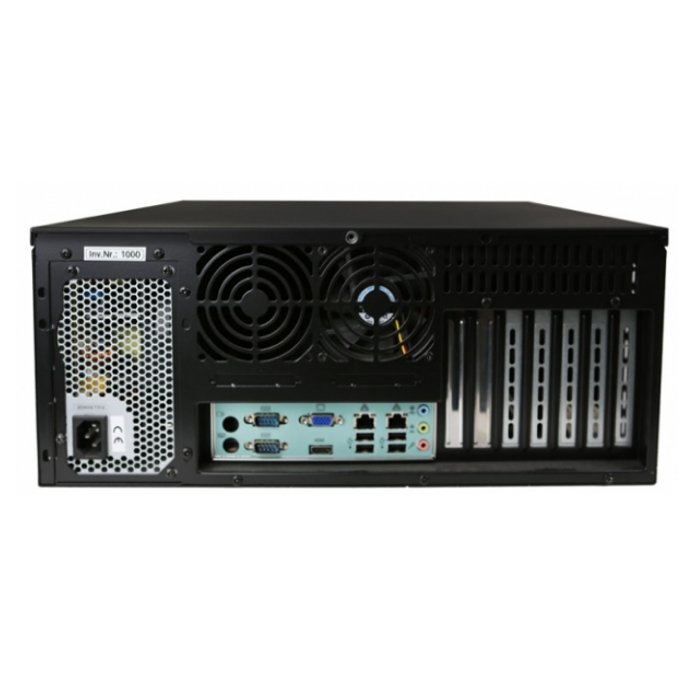

Connector port : 2 x LAN, 2 x COM, 4 x USB, 1 x VGA
Cooling : 2 x 80mm Cooling Fan(s)
제품 상세정보
- Processor (CPU)
Intel® Xeon® W-2100 Processors
Intel® Xeon® W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported
CPU TDP supports Up to 165W TDP
- System Memory
Up to 512GB ECC RDIMM, DDR4-2933MHz
Up to 1TB Registered ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
- Network Controllers
Dual LAN with Intel® i210 Gigabit Ethernet Controller
- USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
- Serial Port / Header
2 COM Ports (1 rear, 1 header)
- Expansion Slots
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4 (in x8 slot)
- SMPS
1000W / 80 PLUS GOLD
- Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
- OS Compatibility
Windows 10 Pro (32bit, 64bit) / Windows IoT Enterprise (32bit, 64bit)
- Dimensions (W x H X D)
483 x 177 x 528m
