Industrial System

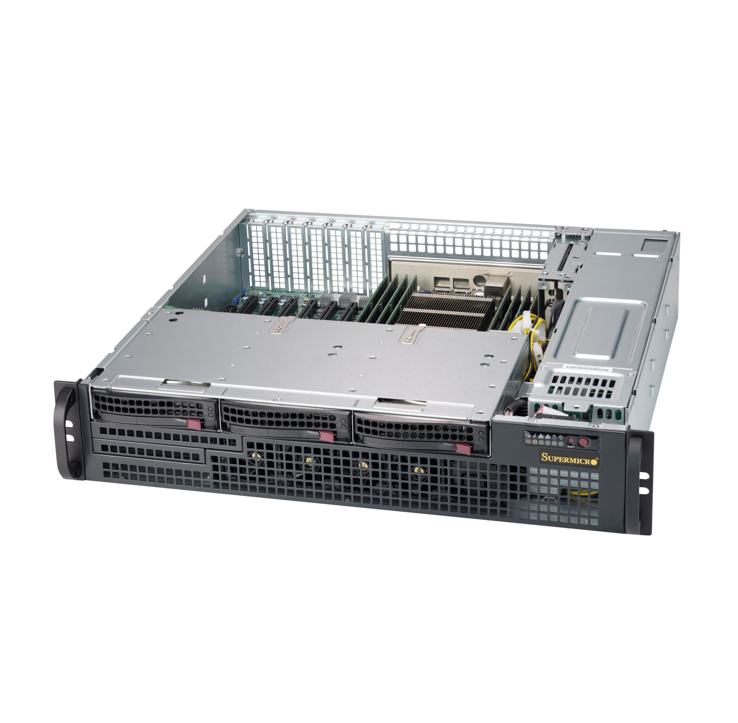

825MBTQC-R802LPB
Mounting : 2U Rack Mount
Material : Aluminum
Drive Capacity : 3 x 3.5, 2 x 2.5 (optional) Hot Swap Bay
Slot : 7 Slot
Connector port : 2 x LAN, 4 x USB, 1 x VGA
Cooling : 4 x 40mm Cooling Fan(s)
제품 상세정보
Intel® 6th/7th Generation Core i3 series
Intel® 6th/7th Generation Core i5 series
Intel® 6th/7th Generation Core i7 series
Intel® Xeon® processor E3-1200 v6/v5
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
- System Memory
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
- Network Controllers
Single LAN with Intel® Ethernet Controller I210-AT
Single Intel Ethernet PHY i219LM
- USB
4 USB 2.0 ports (2 rear + 2 via headers)
6 USB 3.1 Gen1 ports(2 rears, 4 via headers)
1 USB 3.1 Gen2 ports + 1 Rear Type C)
- Serial Port / Header
1 COM Ports (1 header)
- Expansion Slots
3 PCI-E 3.0 x16,
1 PCI-E 3.0 x1
1 - 5V PCI 32bit
***3 PCI-Ex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCI-E x1 is in x4 slot***
- SMPS
800W / 80 PLUS TITANIUM
- Operating Environment
Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F)
- OS Compatibility
Windows 10 Pro (32bit, 64bit) / Windows IoT Enterprise (32bit, 64bit)
- Dimensions (W x H X D)
