Fanless Computer

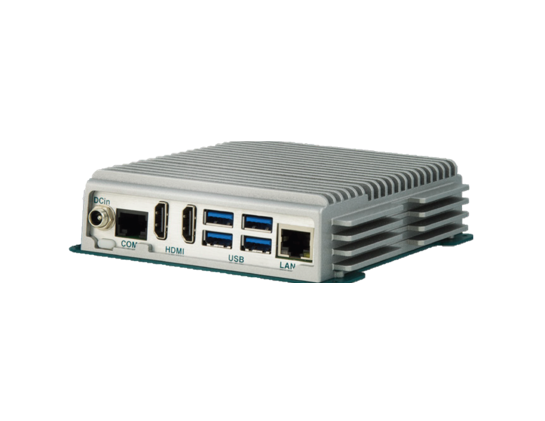

IEC-3902
Mounting : Wall Mount
Construction : Aluminum
Color : Silver
Drive Capacity : M.2 m-key 2280 socket
Dimensions (W x H x D) : 130mm x 35mm x 124mm
제품 상세정보
- Processor (CPU)
Soldered onboard Intel
i7-8665UE 1.7GHz (Base)/ 4.4GHz (Turbo);
i5-8365UE 1.6GHz (Base)/ 4.1GHz (Turbo);
Celeron 4305UE 2.0GHz (Base) Processor
- System Memory
Two DDR4 SO-DIMM sockets
- Network Controllers
1 x Intel® i219LM PCIe GbE PHY, support vPro & AMT
- Display
2 x HDMI video outputs, support 4K/60Hz on both HDMI ports simultaneouslly
- Graphics
Integrated Intel HD Graphics 620
- Storage
M.2 m-key 2280 socket
- USB
4 x USB 3.0 ports
- Serial Port
1 x RS-232 port with RJ-45 connector
- Power Requirement
Main Power Input : DC 24V input
Power Consumption : Max. 60W
- Environment
Operating Temp :
-40 ~ 70°C (-40 ~ 158°F), ambient w/ air flow
Storage Temp :
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity :
10 ~ 95% @ 70°C (non-condensing)
Vibration :
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation
Shock :
Operating 10G (11ms), non-operating 20G
- OS Compatibility
Windows 10 IoT/ Linux
- Dimensions (W x H x D)
130 x 124 x 35 mm (5.12” x 4.88” x 1.37”)
- Ordering Information
IEC-3902-8665UE
- Digital Signage Player with Intel Core i7-8665UE, w/ 2xHDMI, 60W power adapter
IEC-3902-8365UE
- Digital Signage Player with Intel Core i5-8365UE, w/ 2xHDMI, 60W power adapter
IEC-3902-4305UE
- Digital Signage Player with Intel Celeron 4305UE, w/ 2xHDMI, 60W power adapter
