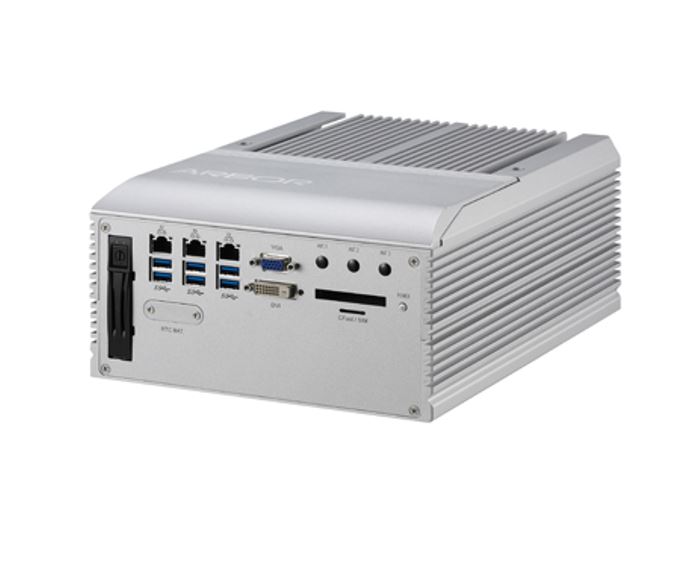

Fanless Computer
FPC-9002-P6
Wide Range DC power Input (19~36V)
Power on/off delay control / Configurable ignition power control
2 x SATA SSD (1 x removable, 1 x fixed), supporting RAID 0,1
Front-accessible I/O support
SMART FAN control support
제품 상세정보
- Processor (CPU)
Intel® Xeon® E3/6th & 7th generation Core i7/i5/i3 processor in LGA1151 socket
- System Memory
2 x 260 - pin DDR4 SO - DIMM sockets, supporting 2133 MHz SDRAM up to 32GB
- Network Controllers
3 x RJ - 45 ports for GbE
6 x RJ - 45 ports for PoE
- Display
1 x DP
1 x HDMI
1 x VGA
1 x DVI (supporting 3 independent display)
- Graphics
Integrated Intel® HD Graphics
- Storage
2 x 2.5" drive bays (1 x removable, 1 x fixed)
1 x CFast socket, can be outside accessible
- USB
6 x USB 3.0 / 2.0 ports
Internal USB dongle (Optional)
- Serial Port
2 x RS-232 / 422 / 485 configurable
- Power Requirement
DC 19 ~ 36V in put (w/4-pin DC in put terminal block, combining remote power on/off switch)
- Environment
Operating Temp : -20 ~55℃ (-4 ~ 131℉), ambient w / air flow
- OS Compatibility
Windows 7 / Windows 8 / Windows 10 IOT (For 6th Gen Intel CPU) / Linux (Kernel: 4.4X)
- Dimensions (W x H x D)
8.86" (225mm) x 1.96" (120mm) x 11.50" (292mm)
