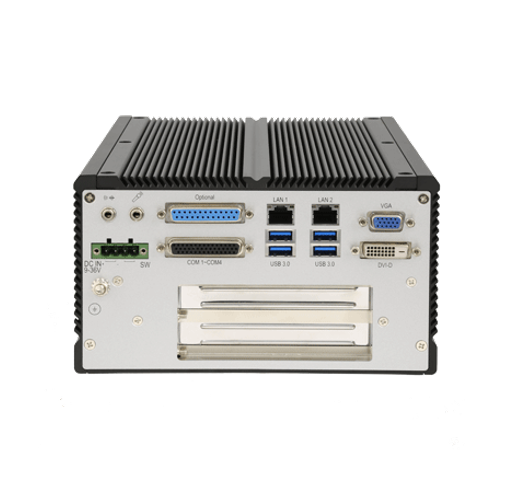

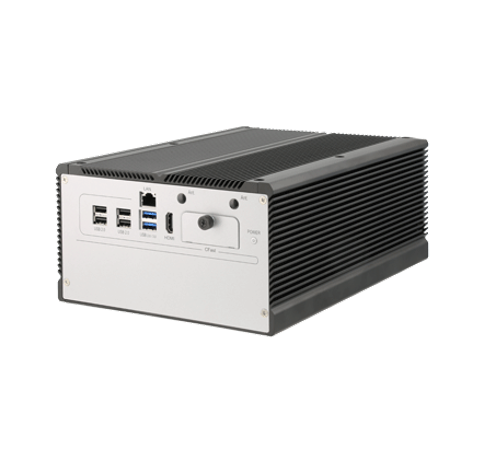

FPC-7911/7912/7913 > Fanless Computer

 - Processor (CPU)

   Intel® 6th & 7th generation Core™ i7/i5/i3 processor in LGA1151 socket​

​ - System Memory

   2 x 260-pin DDR4 SO-DIMM sockets, supporting 2133 MHz SDRAM up to 32GB​

​ - Network Controllers

   2 x Intel® WGI211AT GbE controllers

   ​1 x Intel® WGI219LM GbE controller w/o iAMT

​ - Display

   1 x DB-15 female connector for Analog RGB

   ​1 x HDMI

   ​1 x DVI-D female connector for digital video output

   ​   ​* Support 2 independent display

​ - Graphics

   ​Integrated Intel® HD Graphics

​ - Storage

   2 x 2.5” drive bays

   ​1 x CFast socket, can be outside accessible

​ - USB

  6 x USB 2.0 ports (Front side)*

  ​4 x USB 3.0 ports (Rear side)

  ​Support internal USB dongle (Optional)

​ - Serial Port

   4 x RS-232 ports via one DB-44 female connector. (COM1 and COM2 are RS-232/422/485 configurable)​

​ - Power Requirement

   ​DC 19 ~ 36V in put (w/4-pin DC in put terminal block, combining remote power on/off switch)

​ - Environment

   ​Operating Temp : -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, for 65W TDP CPU need to configure TDP to 35W via BIOS setting.​

​ - OS Compatibility

    Windows 7 / Windows8.1 ( For 6th Gen Intel CPU)​

    ​Windows 10 IOT (For 6th/7th Gen Intel CPU)

    ​Linux (Kernel: 4.X)

​ - Dimensions (W x H x D)

​     8.86" (225mm) x 1.96" (120mm) x 11.50" (292mm)

​ - Ordering Information​

​     FPC-7911

​      - ​Fanless system w/ 1x PCI + 1 x PCIe x 16

​     ​FPC-7912

​     ​ - Fanless system w/ 1x PCIe x 8 + 1 x PCIe x 16

​     ​FPC-7913

​     ​​ - Fanless system w/ 2x PCI​
