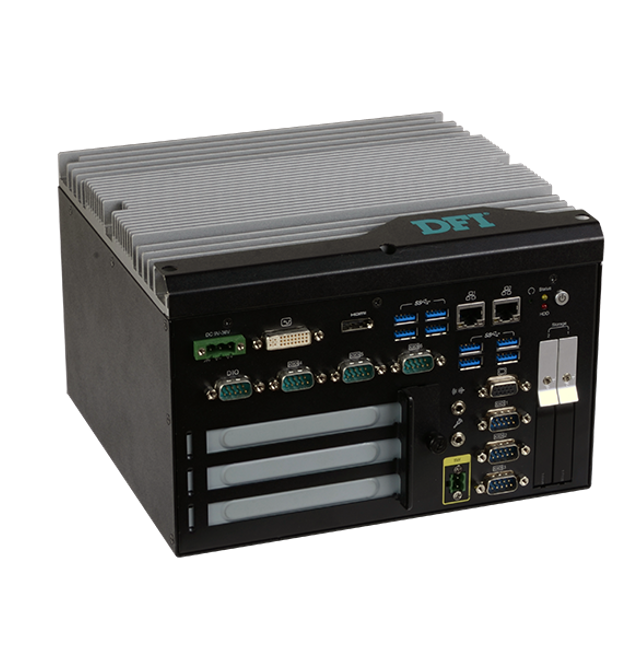

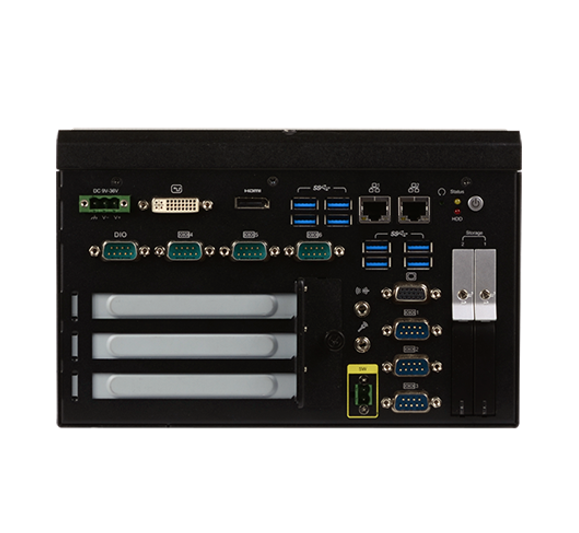

EC531/EC532-SD > Fanless Computer

 - Processor (CPU)

   ​6th/7th Generation Intel® Core™ Processors, LGA 1151 Socket​​

​ - System Memory

   Two 260-pin SODIMM up to 32GB

   ​Dual Channel DDR4 1866/2133MHz

​ - Network Controllers

   1 x Intel® I211AT PCIe (10/100/1000Mbps)

   ​1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)​

​ - Display

   1 x VGA

   ​1 x DVI-I (DVI-D signal)/HDMI (HDMI available upon request)

   ​1 x HDMI/DP (DP available upon request)

   ​(only Q170 supports HDMI/DP)

   ​VGA: resolution up to 1920x1200 @ 60Hz

   ​DVI-I: resolution up to 1920x1200 @ 60Hz

   ​HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz

   ​DP: resolution up to 4096x2304 @ 60Hz

​

 ​ - Graphics

   ​Intel® HD Gen 9 Graphics​

​ - Storage

   2 x 2.5" SATA 3.0 Drive Bay (Removable, support thickness 7mm HDD or SSD) (RAID 0/1)​​

​ - USB

   ​8 x USB 3.0 (type A)

​ - Serial Port

   4 x RS-232/422/485 (DB-9) (RS-232 with power)

   2 x RS-232/422/485 (DB-9)​

​ - Power Requirement

   ​DC 9 ~ 36V in put (w/4-pin DC in put terminal block, combining remote power on/off switch)

​ - Environment

   ​Operating Temp : 0 to 50°C​ (32 ~ 122℉​)

​ - OS Compatibility

    ​Windows 7 (32/64-bit)

    ​​Windows 10

    ​​Windows 8.1 (64-bit)​

​ - Dimensions (W x H x D)

​     235mm x 153.8mm x 222mm​​

​ - Expansion​

​     1 x PCIe x16 + 2 x PCI (EC531-SD)

​     ​2 x PCIe x16 (1 x1 and 1 x8 signal) + 1 x PCI (EC532-SD)

​     ​1 x Full-size Mini PCIe (PCIe/USB)

​     ​1 x Half-size Mini PCIe (USB/mSATA)

​
