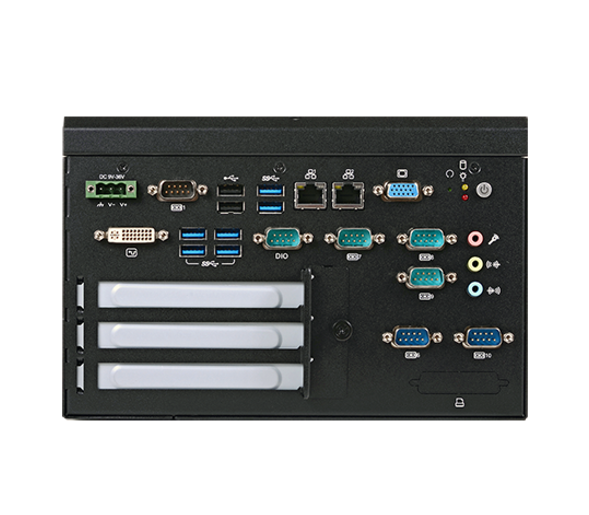

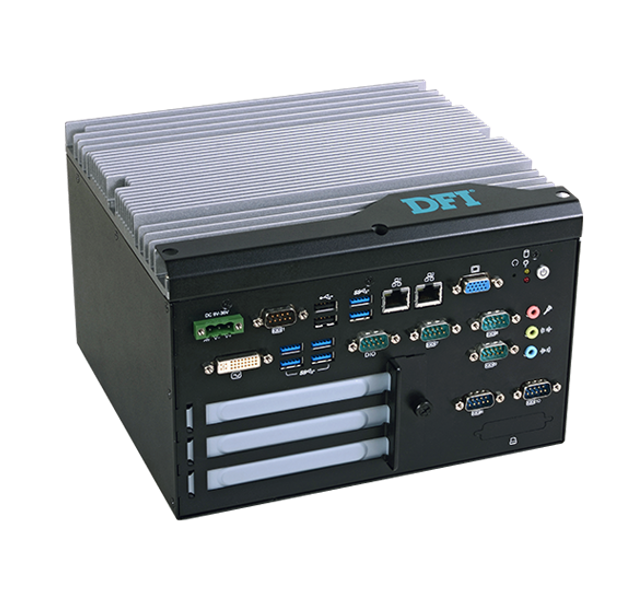

EC531/EC532-HD

4th Gen Intel® Core™ Modular-Designed System
Supports DDR3 SODIMM up to 16GB
2x 2.5 SATA drive bays
3 expansion slots 2 PCIe x16 + 1 PCI / 2 PCI + 1 PCIe x16
1 Vertical USB for securing data from unauthorized access

견적문의

제품 상세정보

 - Processor (CPU)

   ​4th Generation Intel® Core™ processors (22nm process technology)​​​



​ - System Memory

   Two 204-pin SODIMM up to 16GB

   ​Dual Channel DDR3 1333/1600MHz​



​ - Network Controllers

   1 x Intel® I210 PCIe (10/100/1000Mbps)

   ​1 x Intel® I217 PCIe (10/100/1000Mbps)​

​

​ - Display

   1 x VGA

   ​1 x DVI-I (EC531/EC532-HD6881 only)

   ​VGA: 24-bit, resolution up to 1920x1200 @ 60Hz

   ​DVI-I: resolution up to 1920x1200 @ 60Hz​

​

 ​ - Graphics

   ​Intel® HD Graphics​



​ - Storage

   2 x 2.5" SATA 3.0 Drive Bay​



​ - USB

  ​EC532-HD1040:

  ​2 x USB 3.0 (type A)

  ​2 x USB 2.0 (type A)

  ​EC531/EC532-HD6881:

  ​6 x USB 3.0 (type A)

  ​2 x USB 2.0 (type A)



​ - Serial Port

   EC532-HD1040:

   ​1 x RS-232 (DB-9)

   ​EC531/EC532-HD6881:

   ​3 x RS-485 (DB-9)

   ​2 x RS-232 (DB-9)​

​

 ​ - Power Requirement

   ​DC 9 ~ 36V in put



​ - Environment

   ​Operating Temp : 0 to 45°C​ (32 ~ 113℉​)



​ - OS Compatibility

    ​Windows XP (32-bit) (limited function)

    ​​Windows 7, WES 7, Windows 8, WE8S

    ​​Linux (Distribution available upon request)​

​

 ​ - Dimensions (W x H x D)

​     235mm x 153.8mm x 222mm​​​



​ - Expansion​

​     EC531-HD:

​     ​2 x PCI
​     ​1 x Full-size Mini PCIe (PCIe/USB/SATA)
​     ​EC532-HD:
​     ​2 x PCIe x16 (1 x1 signal and 1 x8 signal)
​     ​1 x PCI
​     1 x Full-size Mini PCIe (PCIe/USB/SATA)​
