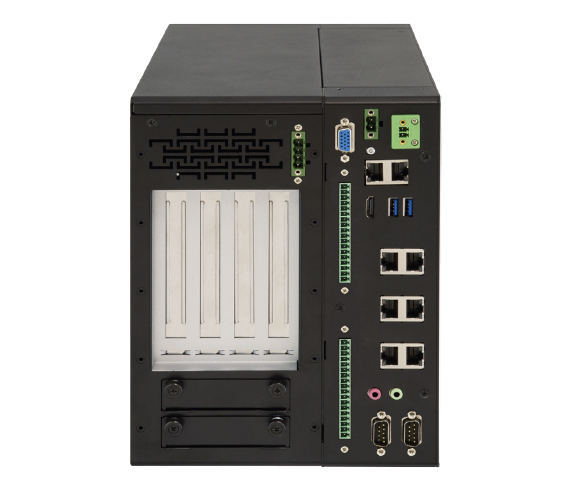

FPC-9107-P6-G2 > Fanless Computer

 - Processor (CPU)

​   10th generation Intel® Xeon®Core™i9/i7/i5/i3 processor in LGA1200 socket

​

​ - System Memory

   2 x 260-pin DDR4 SO-DIMM sockets,

   supporting 2933 ( i9/ i7 CPU)/2666( i5/ i3 CPU)/2400 MHz

   (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC)

​ - Network Controllers ​

   1 x Intel® WGI225LM 2.5GigE LAN

   1 x Intel® WGI219LM PCIe controllers w/ iAMT14.0

   6 x Intel® WGI211AT PCIe controllers for PoE

​​ - Display

   1 x HDMI

   1 x DB-15 female connector for Analog RGB

​​ - Graphics

   Integrated Intel® HD Graphics​

​​ - Storage

   2 x 2.5” drive bays (outside accessible )

   1 x M.2 B key ( 2242/3052/2280 )

   w/(PCIex2+USB3.0+SATA ) interconnected with SIM for 5G/LTE expansion or storage ( either one)​

​​ - USB

   2 x USB 3.2 Gen2 (10Gbps) / 2.0 ports

   Internal USB dongle

​​ - Serial Port

   2 x RS-232/422/485 configurable (default RS-232)​

​​ - Power Requirement

    Main Power Input​ :​

      DC 9~36V input (w/ 2-pin DC input terminal block )

​   Secondary Power Input : ​

      DC 12-36V input ( w/ 4-pin DC input terminal block for graphic cards power support)

    Ignition Switch : ​

       2-pin teminal block: IGN, GND

​

    Operating Temp :

     80W TDP CPU : -20 ~ 50°C (-4 ~ 122°F)

      65W TDP CPU : -20 ~ 55°C (-4 ~ 131°F)

      w/ NVIDIA® Tesla T4 : -20 ~ 50°C (-4 ~ 122°F)

      w/ NVIDIA® RTX-3070 : -20 ~ 45°C (-4 ~112°F)

    Storage Temp :

      -40 ~ 85°C (-40 ~ 185°F)

    Operating Humidity :

      10 ~ 95% @ 50°C (non-condensing)

    Vibration :

      Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD

    Shock :

​​ - OS Compatibility

   ​Windows 10 IoT ​

​

​​ - Dimensions (W x H x D)

   180 x 320 x 250 mm​

​​ - Ordering Information​ ​

   FPC-9107-P6-G2

​    - Ruggedized Edge AI Computing Platform supporting Nvidia® RTX-3070 GPU Card or

      Dual Tesla T4 GPU Cards, Intel® 10th Gen Xeon® Core™ Processor with 6 x GbE PoE ( Up to 80W TDP CPU)

​
