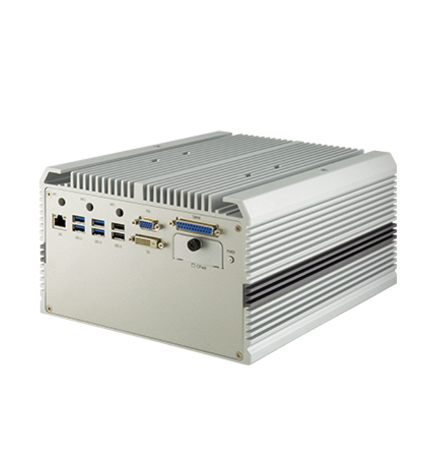

FPC-8107

Mounting : Wall Mount
Construction : Aluminum
Color : Silver
Drive Capacity : 2 x 2.5 Disk (Inside) / 1 x CFast
Slot : 3 Slot
Dimensions (W x H x D) : 225mm x 292mm x 141mm

견적문의

제품 상세정보

 - Processor (CPU)

Intel® 10th generation Core™i9/i7/i5/i3 processor in LGA1200 socket

- System Memory

2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 64GB

- Network Controllers

1x Intel® WGI225LM 2.5GigE LAN

1 x Intel® WGI211AT GbE controller

1 x Intel® WGI219LM GbE controller

(w/o iAMT, H420E) (w/ iAMT, W480E)

- Display

1 x HDMI

1 x DB-15 female connector for Analog RGB

1 x DVI-D female connector for digital video output

* Support 2 independent displays

* Support 3 independent displays (W480E, only)

- Graphics

Integrated Intel® HD Graphics

- Storage

2 x 2.5” drive bays
1 x CFast socket, can be outside accessible

- USB

6 x USB 3.2 Gen1 / 2.0 ports

2 x USB 2.0 ports

Internal USB dongle (Optional)

- Serial Port

2 x RS-232/422/485 configurable via DB-9 connectors

4 x RS-232 ports via DB-9 connectors

- Power Requirement

DC 9~36V input ( w/ 4-pin DC input terminal block, combining remote power on/off switch

- Environment

Operating Temp :

-20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow, (w/ 35W TDP CPU, fanless)

-20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow (w/ 65W TDP CPU, fanless)

Storage Temp : -40 ~ 85°C (-40 ~ 185°F)

- OS Compatibility

Windows 10 IOT Enterprise 64-bit

Linux (Kernel: 4.9)

- Dimensions (W x H x D)

225 x 292 x 140mm (8.86” x 11.50” x 5.51”)

- Ordering Information

FPC-8107-1E2P

- Fanless system, H420E, w/ 1 x PCIe x16 + 2 x PCI

FPC-8107-3P

- Fanless system, H420E, w/ 3 x PCI (BTO )
