Fanless Computer

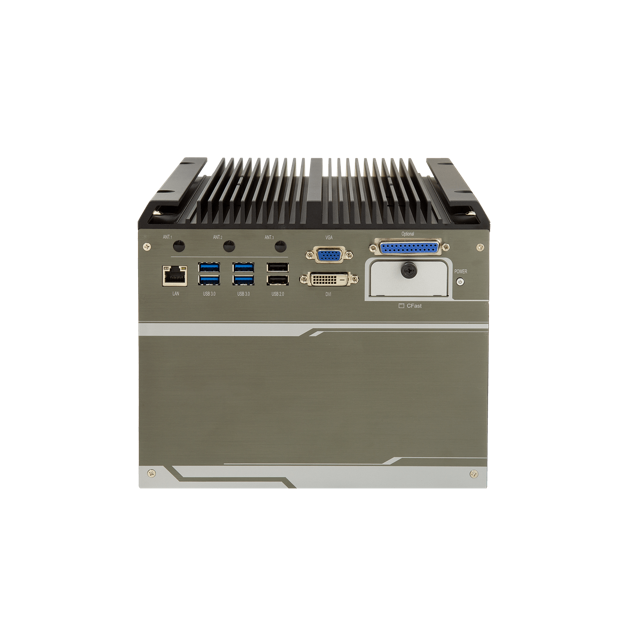

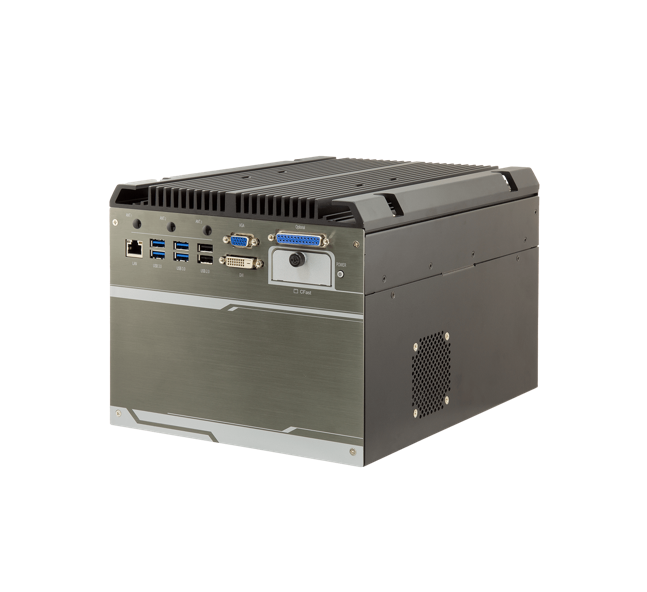

FPC-8108W-G1
Mounting : Wall Mount
Construction : Aluminum
Color : Black
Drive Capacity : 2 x 2.5 Disk (Inside)
Slot : 5 Slot
Dimensions (W x H x D) : 225mm x 190mm x 292mm
제품 상세정보
- Processor (CPU)
Intel® 10th generation Core™ i9 / i7 / i5 / i3 processor in LGA1200 socket
- System Memory
2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 64GB
- Network Controllers
1 x Intel® WGI225LM 2.5GbE LAN1 x Intel® WGI211AT GbE controller
1 x Intel® WGI219LM GbE controller w/ iAMT 14.0
- Display
1 x HDMI1 x DB-15 female connector for Analog RGB
1 x DVI-D female connector for digital video output
* Support 3 independent displays
- Graphics
Integrated Intel® HD Graphics
- Storage
2 x 2.5” drive bays1 x CFast socket, can be outside accessible
- USB
2 x USB 3.2 Gen2 / 2.0 ports4 x USB 3.2 Gen1 / 2.0 ports
2 x USB 2.0 ports
Internal USB dongle (Optional)
- Serial Port
2 x RS-232 / 422 / 485 configurable via DB-9 connectors4 x RS-232 ports via DB-9 connectors
- Power Requirement
Power Input :
DC 9 ~ 36V input Max. 16A/300W (w/ 4-pin DC input terminal block, combining remote power on/off switch)
Ignition Switch :
2-pin terminal block: IGN, GND
Power Consumption :
MAX. 65W (w/35W TDP CPU, w/o I/O card)
MAX. 95W (w/65W TDP CPU, w/o I/O card)
- Environment
Operating Temp :
-20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow, (w/ 35W TDP CPU, fanless)
-20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 65W TDP CPU, fanless)-20 ~ 45°C (-4 ~ 112°F), w/ GTX-1660 GPU
Storage Temp :
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity :
10 ~ 95% @ 70°C (non-condensing)
Vibration :
3 Grms / 5~500Hz / random operation w/ SSD
Shock :
Operating 40G (11ms), Non-operating 60G with SSD
- OS Compatibility
Windows 10 IOT Enterprise 64-bit
Linux (Kernel: 4.9)
- Dimensions (W x H x D)
225 x 292 x 190 mm (8.86" x 11.50" x 7.48")
- Ordering Information
FPC-8108W-G1
Ruggedized Edge AI commputing Box PC with Intel® 10th Gen CoreTM i9 / i7 / i5 / i3 w/ expansion fan and PEG 8-pin power cable,
supporting NVIDIA® 150W GPU
