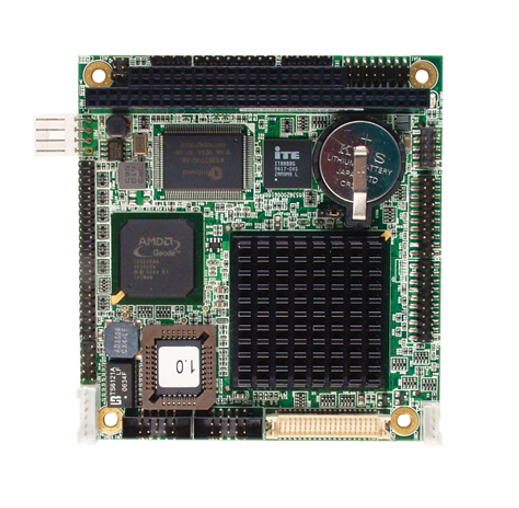

Em104-a5362
Low Power PC/104 CPU Module
Soldered Onboard AMD® Geode™ LX800 Processor
18/24-bit TTL, and Analog RGB
Multi-expansion (2 x USB, 2 x Serial Ports, 1 x PATA, 1 x FDD, PC/104, 1 x CF Socket)
제품 상세정보
- Processor (CPU)
Soldered onboard AMD® Geode™ LX800 500MHz processor
- System Memory
1 x 200-pin DDR SO-DIMM Socket supporting 200MHz SDRAM up to 1GB
- Network Controllers
1 x Realtek RTL8100CL PCI 10/100Base-T Ethernet controller
- Display
LCD: 18/24-bit TTL up to 1280 x 1024
- Graphics
AMD® Geode™ LX800 CPU integrated VGA controller with 2D Engine (Shared memory Max. 64MB)
- Storage
1 x Ultra ATA, support 2 IDE devices
1 x Floppy disk drive
1 x CompactFlash Type II Socket
- USB
2 x USB 2.0 ports
- Serial Port
2 x COM ports (1 x RS-232, 1 x RS-232/422/485 selectable)
- Power Requirement
Small 4P AT power connector
- Environment
Operating Temp : -20 ~ 70°C (-4 ~ 158°F)
- Dimensions (W x H x D)
96 x 90 mm (3.8" x 3.5")
- Expansion
PC/104 interface
