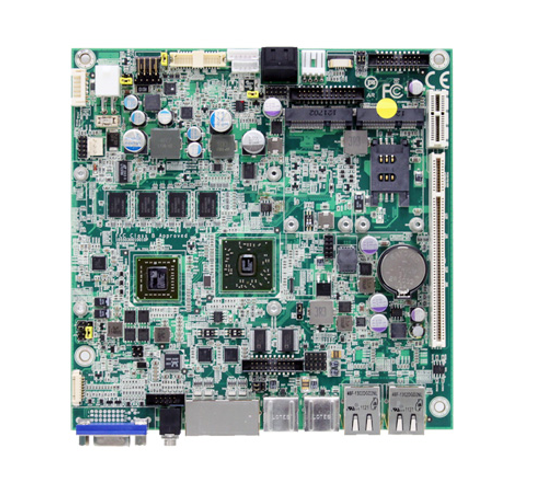

ITX-a55E3 > Embedded

 - Processor (CPU)

   Soldered onboard AMD G-Series Processor G-T40N 1.0GHz​​​

​ - System Memory

   Soldered Onboard 2GB DDR3​

​ - Network Controllers

   2 x Realtek® RTL8111 PCIe GbE controllers​

​ - Display

   DVI-I: Analog RGB support up to 2048 x 1536 or TMDS support up to 1920 x 1200

   ​LVDS: Dual Channels 24-bit LVDS​

​ - Graphics

   Integrated Radeon™ HD 6250​​

​ - Storage

   2 x Serial ATA ports with 600MB/s HDD transfer rate

   ​1 x mSATA socket​

​

​ - USB

  ​​8 x USB 2.0 ports

​ - Serial Port

   4 x RS-232 ports

   ​2 x RS-232/422/485 selectable

​ - Power Requirement

   DC 9 ~ 36V​​

​ - Environment

   ​Operating Temp : -20 ~ 70°C (-4 ~ 158°F)

​ - Dimensions (W x H x D)

​     170 x 170 mm (6.7” x 6.7”)​

​ - OS Compatibility

    ​Windows XP 32-bit

    ​​Windows 7 32/64-bit

    ​​Linux: Ubuntu​

​ - Expansion​

    ​1 x PCI slot

    ​1 x Mini card socket

    ​1 x PCIe x1 slot

    ​1 x SIM card socket​
