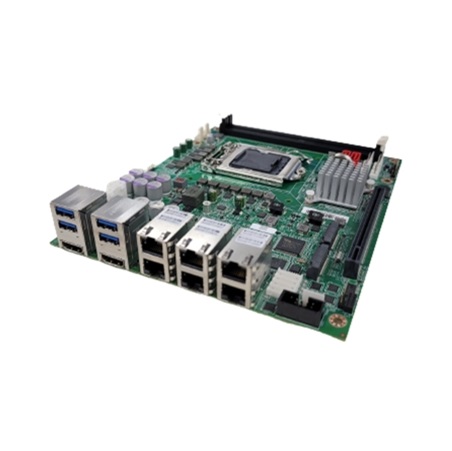

G10520-92QA > Embedded

- Specifications

- Processor (CPU)

  Socket LGA1200, support Intel® 10th Xeon/ Core i3/ i5/ i7/ i9 processors

- System Memory

  2  DDR4 UDIMM Sockets, Support Up to 64GB

- Network Controllers

  5  LAN with 1GbE with Intel® Ethernet Controller I210-AT

  1  LAN with 1GbE with Intel® Ethernet Controller I219LM

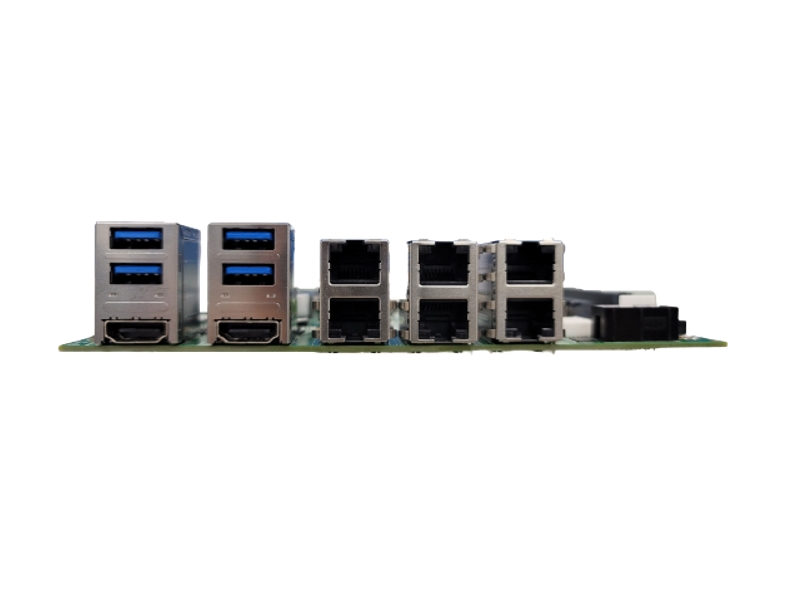

- USB

  4 USB 3.0 ports  + 2 USB 2.0 ports (2 via headers)

- Serial

  5 x COM ports, (3 x RS-232 ports with pin-header, 2 x RS-232/422/485 ports with pin-header)

- Storage

  4 SATA3, RAID 0, 1, 5, 10 Supported

  2 M.2 2280 M-Key (Gen3x4, Supports NVMe SSD)

- Expansion Slots

  1 PCI-E 3.0 x16
  + 2 Slot Riser Card Expansion Support
  - 2 PCIe x 16
  - 1 PCIe x 16 + 1 PCI
  - 2 PCI

- Power Input

  Wide Range 9V ~ 36V DC input

- Operating Environment

  Operating Temperature Range - 0°C ~ 60°C (32°F ~ 140°F)
